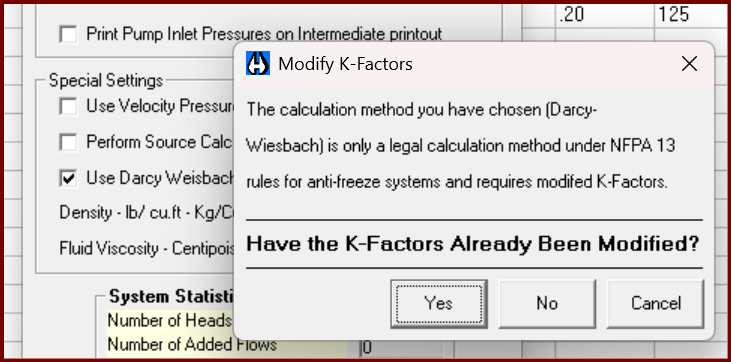

The error is

When accessing a HydraLIST wizard

The cause: an entry in the wizard file has been deleted, causing a blank field in the wizard

The solution: send the .wzrd file to Hydratec for repair. The .wzrd file is located in the :\HES\Hydlist\VER50\Data\Setup

As always, let me know if you have questions and when the card is ready for review.

Hi Jason,

I do have a video to help with the Retrofit process using hand sketches.  It was also a part of one of my previous classes.  Here is a portion of the video topic index from that class:

"Retrofit  Project Proceedures(4)

         Create a Working View w/ Existing Pipe

                  Open appropriate Working Floor Plan .  .  .  .  .  .  .  .  .   01:45:05"

"                  Insert Survey Notes .  .  .  .  .  .  .  .  .  .  .  .  .  .  . 01:52:39"

"                  Trace over Survey .  .  .  .  .  .  .  .  .  .  .  .  .  .  .     02:20:54"

"                  Adjust according to Surveyed Dims .  .  .  .  .  .  .  .  .  . 02:20:57"

"                  Walker & Set Phase to Exist'g .  .  .  .  .  .  .  .  .  .  .           02:21:00"

"         Identify & Isolate Demo Pipe

                  Change Phase of all demo'd to Demo .  .  .  .  .  .  .  .  .  .               02:47:07"

"                  Create Group of all Demo Items .  .  .  .  .  .  .  .  .  .  .     02:48:40"

"                  Detach Demo Phase from Model .  .  .  .  .  .  .  .  .  .  .  .               02:48:44"

"         Add New Sprinklers & Connect to Exst'g

                  Model new Sprinklers .  .  .  .  .  .  .  .  .  .  .  .  .  . 02:48:45"

"                  Use CH (Configure Head) to connect to outlet .  .  .  .  .  .         02:48:52"

"                  Use PI to Pipe new heads to Exst'g Outlets .  .  .  .  .  .  .             02:49:02"

"                  Use PI to Pipe new heads to new outlets .  .  .  .  .  .  .  .              02:49:11"

"         Result is Calc & Listable

                  No change to Calc Proceedure .  .  .  .  .  .  .  .  .  .  .  .      02:49:19"

"                  List requires Existing Pipes be excluded .  .  .  .  .  .  .  .               02:49:30"

End of topic. . .  . . . . ..                                                              2:50:00

Here is a link to that recording:

               https://hydratec.sharefile.com/d-s77501b667f7545bcb98e9be1d2de1eb0

Once posted, the title of that video would be:   “ creating a Retrofit  Revit project using a hand sketch to trace over the exitisting piping”

The tags could include:   “retrofit”,  “renovation”,  “survey”,  “tracing”, “existing”, “sheetrock”

The description of this new video can be the video topic index referenced above with the times adjusted for the segregated video.

o that by double clicking the image.

Hi Jason,

I am still hopeful that you can retrieve your existing piping from a previous HydraCAD for AutoCAD dwg and I am still anxious to point you to a good video to help with that but in this e-mail I wanted to share a video that describes the collaboration process in case that is applicable to your new project.  Here is the link to the class recording with that information:

               https://hydratec.sharefile.com/d-s1b774bc2f7ad4631b6da5aa198cea3d2

That video is 3+ hours long but the portion of interest to you is between 2hrs 5 min   and 2hrs 40min.   I have cc’d Derek on this so that he can slice that out of the long video and add it to our Helpful videos.  It could then be found by searching for:  “Collaboration”, ”Central Models”,  “Worksharing”, “Colaborate”, “Worksets”, “Cloud Model”, “BIM360”

I am going to Derek to clip that 35 min video and post it tho helpful videos with the tags mentioned above.  The title of that video will be “Collaboration of your Fire Protection model with other trades represented as linked Revit Models”

The description of that video should include:

Fire Protection Models can be generated using linked references to other trades in multiple ways including:

• Local Fire Protection Model linked to multiple Revit Projects for the other trades. Local refers to rvt files saved on your hard drive or rvt files saved on a company network drive or even rvt files saved as cloud models so long as nobody else is refencing those files
• Shared Fire Protection model as a central work shared model, linked to the other trades in workshared central models saved on a local network drive or in the Autodesk Construction Cloud (ACC).

This video is focused on the Shared Fire Protection model.   There is also another Helpful Video (pdf) titled “Let’s start a new revit project with linked Revit models” worth investigating.   Local Fire Protection models are what we normally cover in the On-Line training and can have the rvt files hosted anywhere so long as you are the exclusive user of those files.

Best regards,

Alan

Unhandled Exception... System.ArgumentOutOfRangeException: Index was out of range

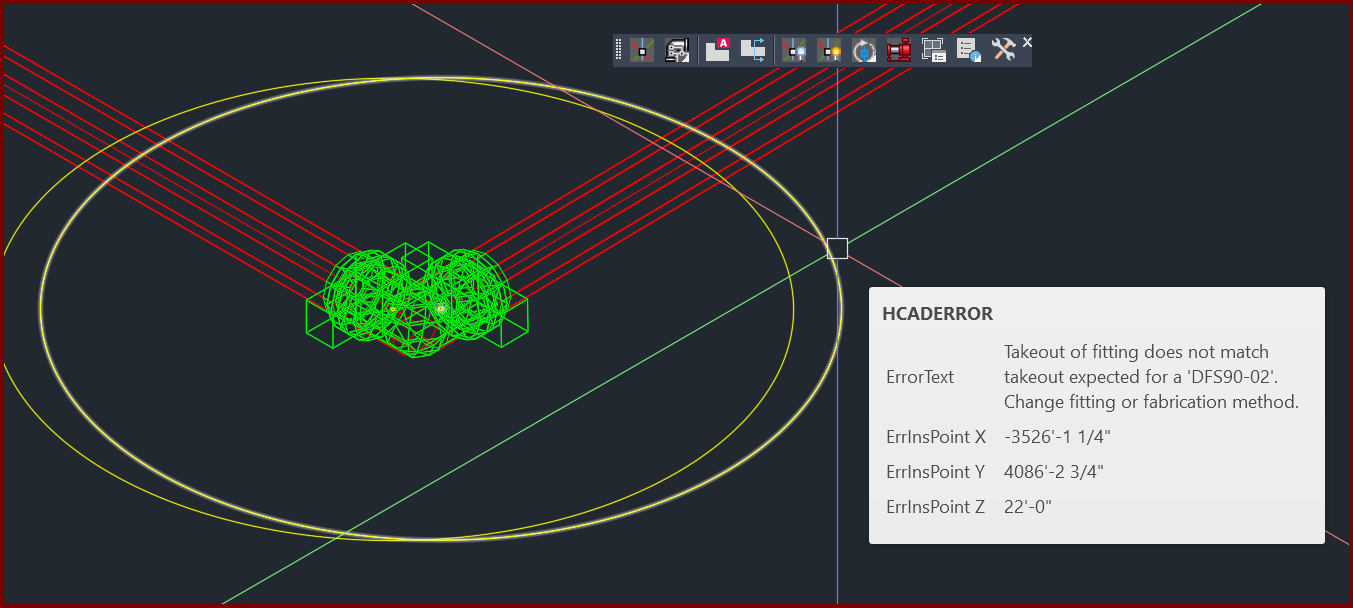

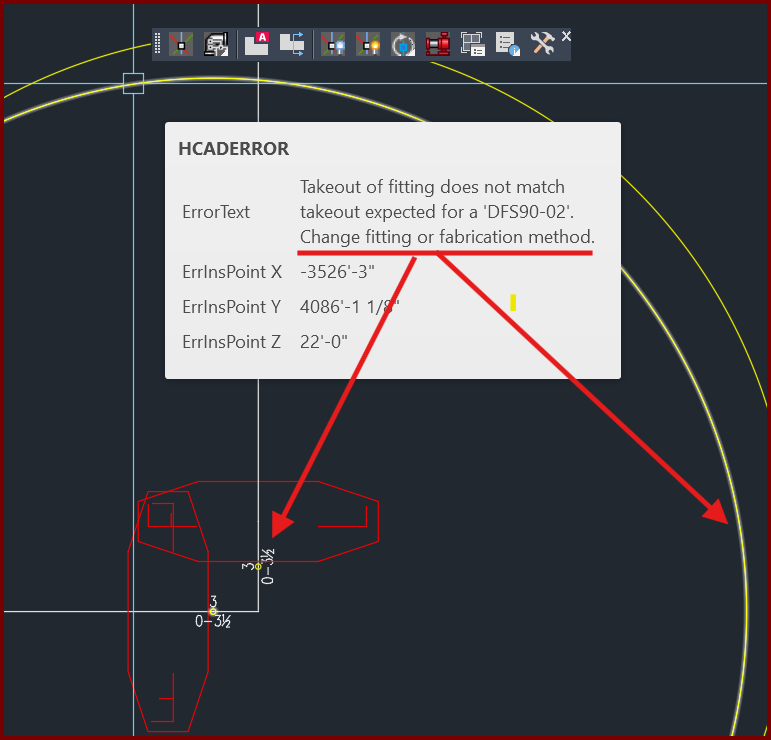

Auto Adjust Fittings defaults to unchecked.

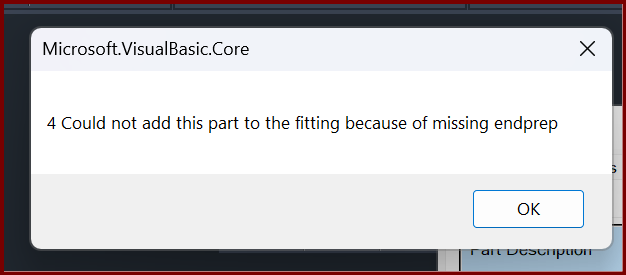

Error encountered when creating an FSC block... Can appear as either of the two shown below:

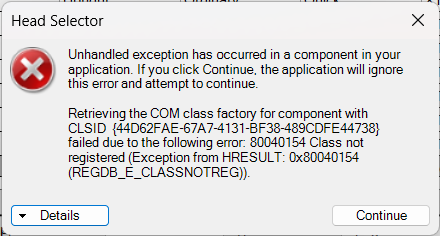

Spacing and Layout... Unhandled exception... Method not Found 'Void HeadSelectorForm.HeadForm..ctor()'

Welded and Grooved POLs look strange when modeled in Metric units, and their dynamic lengths are reported incorrectly.

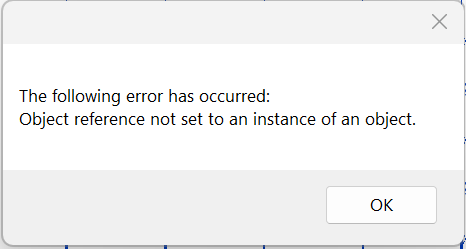

Error when picking Write RTS Point List To File

When inserting a SIDEWALL sprinkler, HydraCAD does not ask for the rotation angle of the sprinkler head, it inserts it at 0°

Ideally, it should ask for the rotation angle of the sprinkler head;

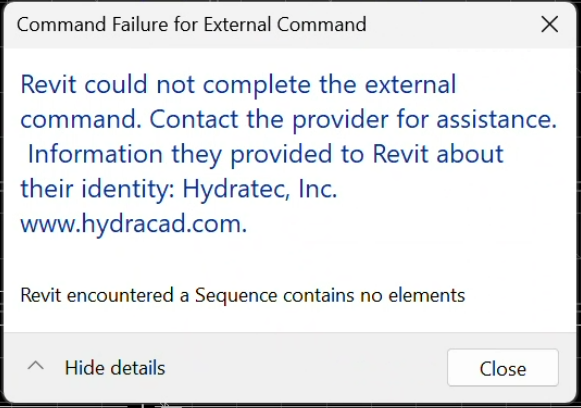

Command Failure for External Command... The Parameter is Read-Only

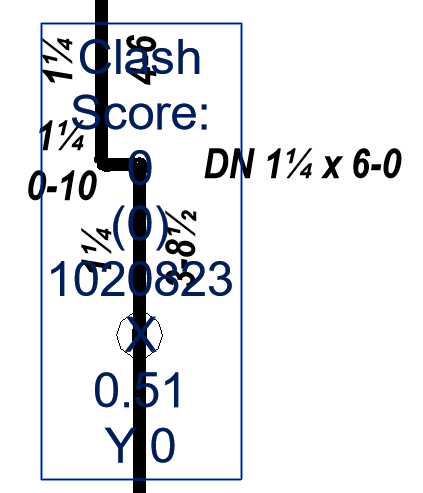

When using 'Publish selected layouts' or doing a batch plot in AutoCAD 2024, the riser nipple/vertial pipe does not display correctly.  It'll either be missing outright or a proxy bounding box will be in its place.  If you plot a single sheet, it works fine.

AutoCAD 2024 batch plot

'

AutoCAD 2024 single plot

A second copy of PIPEX blocks (SPRKDATA layer) appears on the drawing when using NWCOUT

blue beam loaded on machine (a pdf writer) 3dfittings unhandled exceptio

Sprinkler heads not defined in the drawing or no 3D block assigned for a sprinkler head. Going to Navis only - corrupt Persistent Model drawing? eKeyNotFound Dialog box HydraCAD

NOTE - If you are getting this message when opening AutoCAD/HydraCAD by using your desktop icon, see HydraCARD #260.

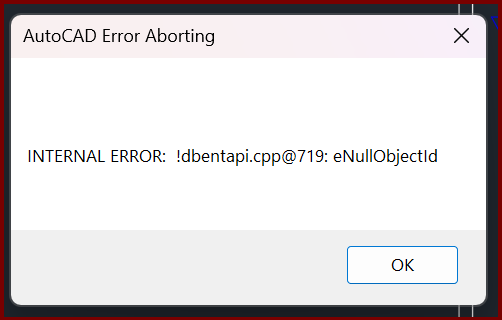

When opening, closing, or saving a specific drawing, you only receive this error message and not a HydraKEY security error with the golden X.

After AutoCAD opens, press F2 to view the command prompt, see if the text below appears.  This may or may not be related, IDK.

Is 2024; error: no function definition: PRINTEM

You will likely this message as well;

All of the possible directories for storing temporary files either do not exist or are readonly.  Please correct this situation before running AutoCAD again.

No message. Double-clicking a DWG file to launch AutoCAD opens drawing but also starts a new drawing or brings up the Start Menu.

After Autolist has run, your drawing doesn't display any cut pipe dimensions.  Only cut vertical pipes/riser nipples are visible, but not the megenta PIPEX block

After processing a stock list, the Total weight value displays as -999.0000

When attempting to activate an Entitlement you get the error;

System,Net.WebException: The remote server returned an error: (400)
Bad Request.
at System.Net.HttpWebRequest.GetResponse()
at HCADLicense,Form1.Iogin(String product_key)
at HCADLicense.Form1.btnAuthorize_Click(Object sender, EventArgs e)
