AutoCAD Based (Display)
Total: 6
Page:
* On smaller devices swipe left to view hidden table data
| Ribbon/Toolbar (Software) | Button | Function | Error Type | Description | ||
|---|---|---|---|---|---|---|
| Ribbon/Toolbar (Software) | Button | Function | Error Type | Description | ||
| Card 1398 View | Display (AutoCAD Based) | None | None | None | All layers where objects should appear white in AutoCAD will randomly turn brown in color (colors 18, 19, 248, or 249)
Note the pipe dimension and main piping in the image above are brown instead of white. |
|
| Card 1382 View | Display (AutoCAD Based) | None | None | None | Autocad seems "jumpy" and the screen occasionally flickers. Sometimes, an in-progress command will cancel out when the screen jumps |
|
| Card 1351 View | Display (AutoCAD Based) | None | None | None | No inch marks (“) after the pipe diameter or there are but you prefer to remove them
|
|

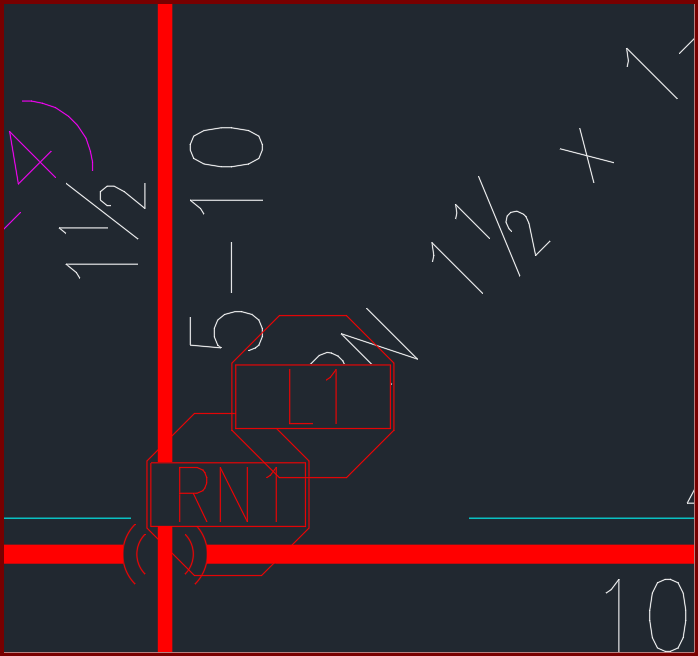

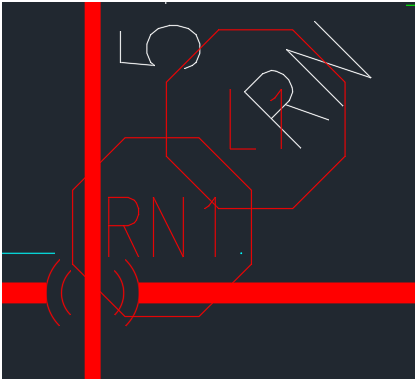

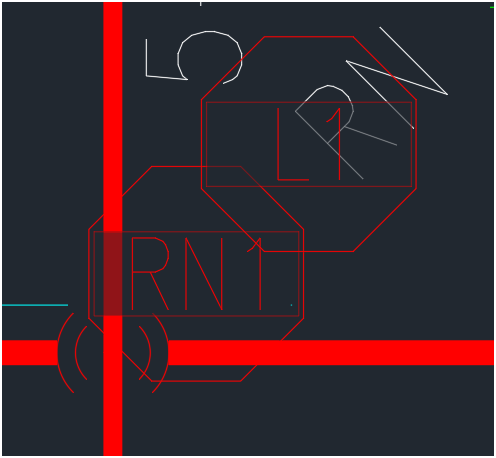

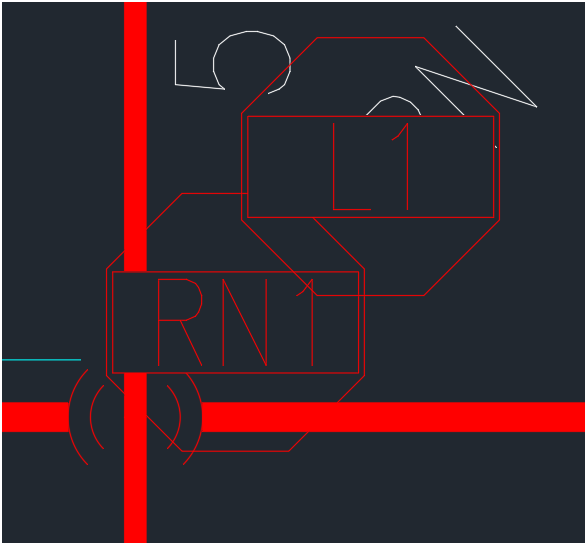

| Card 1346 View | Display (AutoCAD Based) | None | None | None | Line / Main tags are blocking items behind the text / tags are not transparent
|
|
| Card 1062 View | Display (AutoCAD Based) | Osnaps | None | Other | When drawing objects, you get these icons/images/boxes next to the drawn object. If you hover over it, it mentions an osnap option
|
|
| Card 316 View | Display (AutoCAD Based) | None | None | Missing Dialog Box | Command is run, but nothing appears to happen. May get Nil message
|
|
