AutoCAD Based Build 3D Risers (Ribbon/Toolbar/Location)

Button: Insert Fitting Via Parts Tree Error Type: Internal Error

Description:

When trying to insert a specific fitting, you get the error

Could not add this part to the fitting because of missing endprep

then;

AutoCAD Error Aborting

INTERNAL ERROR: !dbentapi.cpp@719: eNullObjectld

Solutions:

Cause:

Unknown but likely an AutoCAD 2025/Hcad v58 issue.

Specifically when inserting this part in Acad 2025, the program will crash, but inserting the same part in Acad 2024 worked.

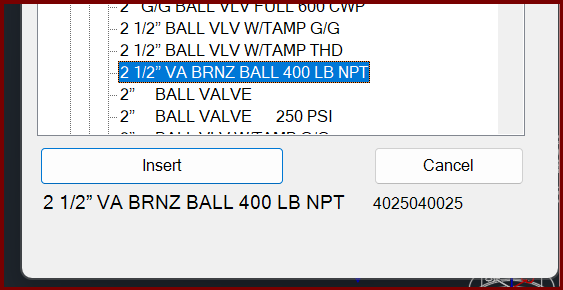

2 1/2" VA BRNZ BALL 400 LB NPT

4025040025

Solution:

Unknown solution at this time.

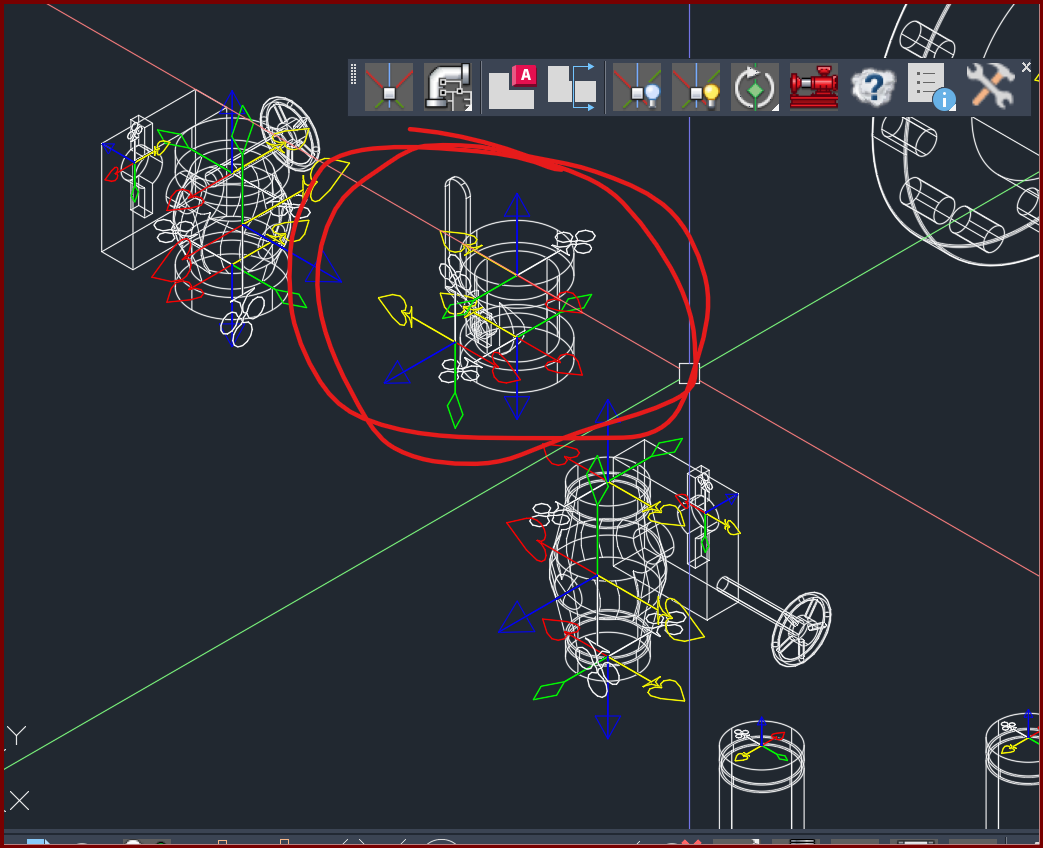

This is the same fitting, which successfully inserted in Acad 2024

If you're adventurous...

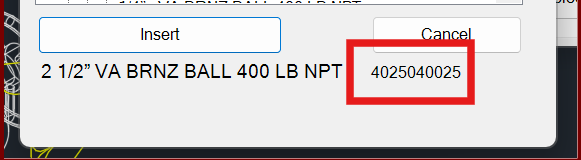

Find out the drawing name by looking at the PN below the CANCEL button.

In Windows Explorer, navigate to this folder;

C:\HES\HydraCAD\Ver50\Programs\3DFTGS and look for the matching .DWG file with the part number. In this case 4025040025.dwg

Open the file in AutoCAD 2025 then save it. Then attempt to insert it via the parts tree again in your working drawing. This was successful with my test.
