AutoCAD Based 3D Modeling (Ribbon/Toolbar/Location)

Button: Check Elevation

Description:

TOS block looks odd or has unusual insertion point or text is placed far away

Cause:

Drawing has old TOS block (perhaps because user is using old template)

Solution:

1. Erase all TOS blocks (use Select Similar) to select all

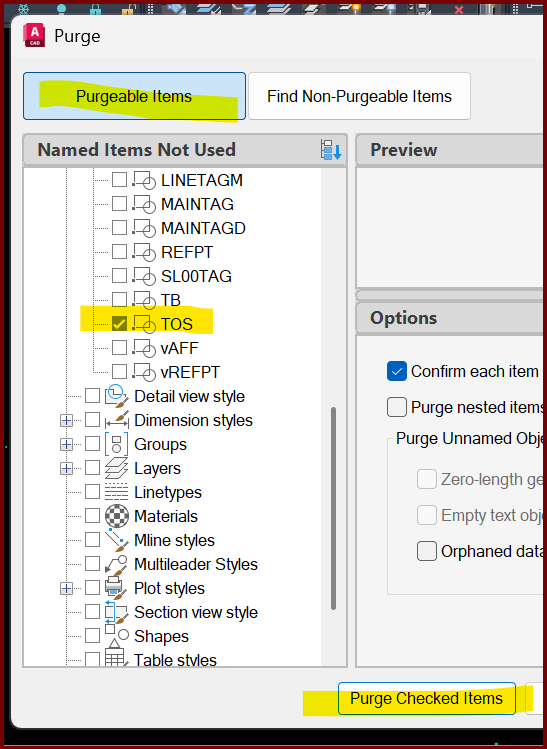

2. Purge out TOS block from the drawing

3. Start new drawing using V50 templates and insert problem drawing into it.

Updated: April 13, 2026, 3:08 p.m. Created: March 1, 2019, midnight
