Revit Based HydraCAD (Ribbon/Toolbar/Location)

Button: Spacing and Layout Function: Insert Sprinklers Error Type: Command Failure for External Command

Description:

Revit could not complete the external command... Family symbol is not valid for this instance


Solutions:

Cause:

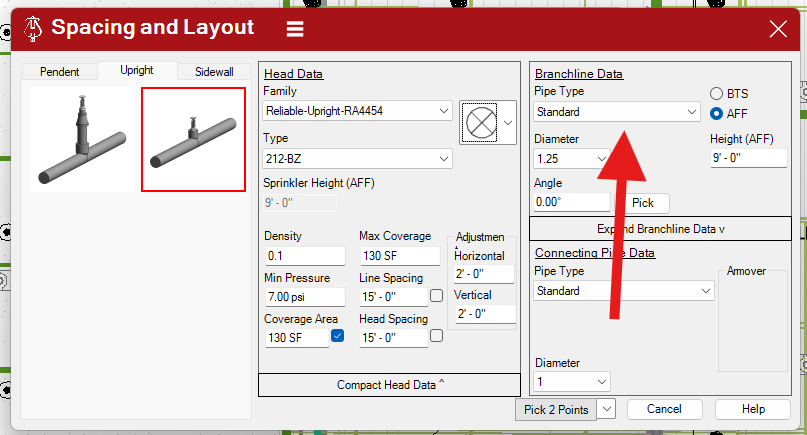

Branchline Data's Pipe Type is set to standard, and not a Hydratec pipe type:
Solution:

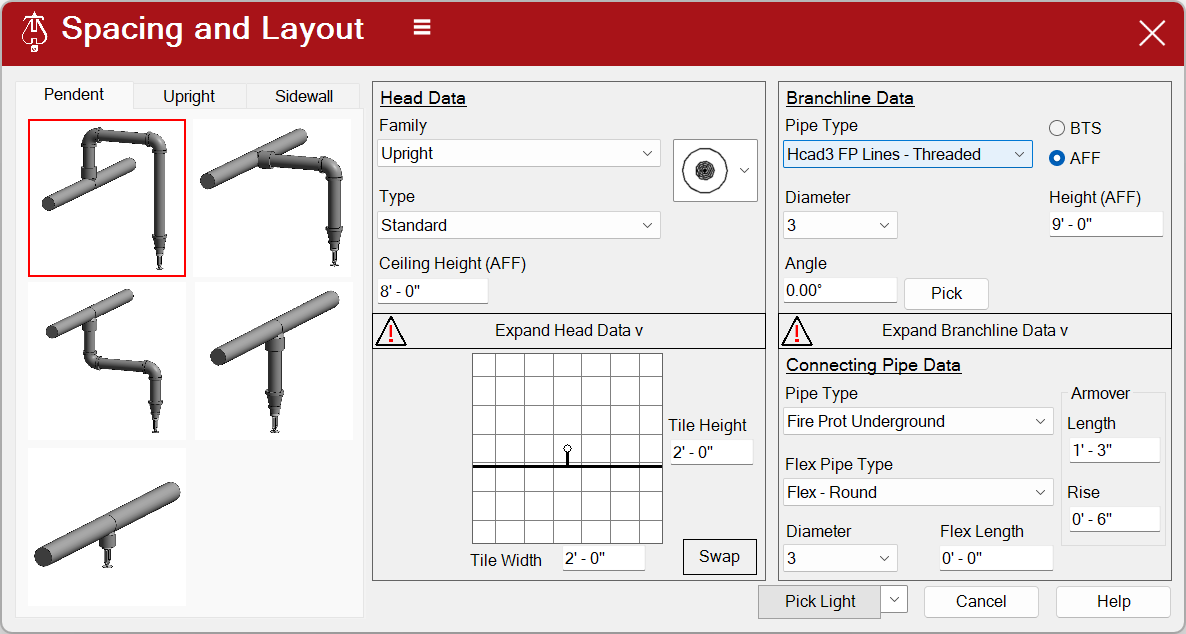

From that drop down menu, select one of Hydratec's pipe types. In the below example, Hcad3 FP Lines - Threaded was chosen.
