HydraCARDs | The font of your vertical pipes do not match the font of your pipe dimensions <img src="https://hydracards-storage.s3.amazonaws.com/media/public/django-summernote/2025-08-26/ce2ecf98-1528-4835-a965-3b8bc2103546.png" style="width: 427px;">

Need to save a card for later?

Create a bookmark folder in your browser of choice (Chrome, Firefox...), and save individual cards in your bookmarks to view here later.

AutoCAD Based Riser Nipples (Ribbon/Toolbar/Location)

Error Type: None

Description:

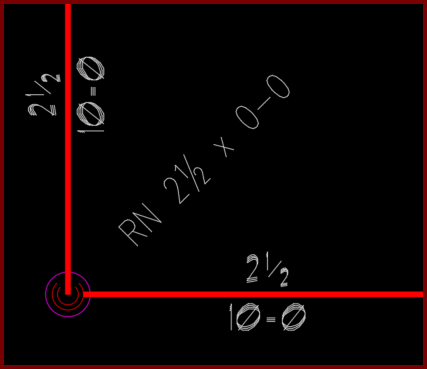

The font of your vertical pipes do not match the font of your pipe dimensions

Cause:

The PIPEX blocks (pipe diameters and lengths) are controlled by the Font Style HCAD

The vertical pipes are controlled by the Font Style STANDARD

Solution:

At the command prompt, type STYLE

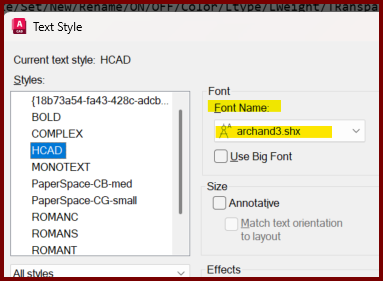

Click the font style HCAD and make a note of which font name/file is being used.

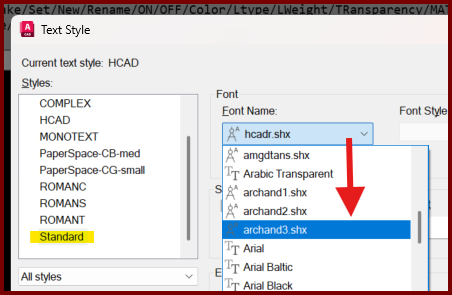

Click the Font Style STANDARD and select the same Font Name used by HCAD

Click APPLY then CLOSE, then REGENALL (if necessary)

Updated: Aug. 26, 2025, 4:21 p.m. Created: Aug. 26, 2025, 4 p.m.
