Standalone HydraCALC (Location)

Button: Calculate Function: Calculating Error Type: Process Error

Description:

Primary calc results are shown, and when selecting OK to continue back to the calc input screen, the two messages below are displayed, twice;



"The designated source node was not found in the list of pipes" OK

"Calculation failed for an unknown reason" OK

Process Error Hydcalc

Solutions:

1.
Cause:

The node used as the source doesn't exist in the list of nodes entered into the calculation
Solution:

Make sure the node you're using in as your Source Point exists in your list of nodes for the calcuation
2.
Cause:

User had a city source AND a pump. The two points for the pump inlet and outlet were connected, AND they were connected in reverse order (ie. pump inlet > pump outlet)


Solution:

Do NOT connect the pump inlet and outlet nodes to each other.  Place PO on a line by itself to designate its elevation.


3.
Cause:

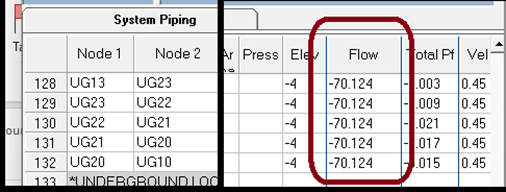

User had two underground loops and the nodes were arranged so there were many negative flows.
Solution:

Rearrange node points so it's a natural flow from demand back to source.  Reverse node postions between Node1 <> Node2 as necessary.



Also, make sure your source point is the last point entered in the input.
