HydraCARDs | When starting AutoCALC the v50 Fuel Gauge stops at step 1a.4 plus you get a Run-time error 6; Overflow <img src="https://hydracards-storage.s3.amazonaws.com/media/public/django-summernote/2025-07-16/9f5d168b-b387-4e12-bccc-e289fc0fb115.png" style="width: 50%;"> Working on pipe from Node ### to Node ### with a fitting of "?" and a diameter of / pipe type of 0.5 / SCHED-40 where the pipe id = ### The "####" values represent handles. It is recommended you use the FINDME tool to find the coordinates of the handles, this will help narrow down the cause of the error. May also see a Runtime Error 5, "invalid procedure"

Need to save a card for later?

Create a bookmark folder in your browser of choice (Chrome, Firefox...), and save individual cards in your bookmarks to view here later.

AutoCAD Based Calculations (Ribbon/Toolbar/Location)

Button: Start Autocalcs Error Type: Runtime 6

Description:

When starting AutoCALC the v50 Fuel Gauge stops at step 1a.4 plus you get a Run-time error 6; Overflow

Working on pipe from Node ### to Node ### with a fitting of "?" and a diameter of / pipe type of 0.5 / SCHED-40 where the pipe id = ###

The "####" values represent handles. It is recommended you use the FINDME tool to find the coordinates of the handles, this will help narrow down the cause of the error.

May also see a Runtime Error 5, "invalid procedure"

Solutions:

Cause:

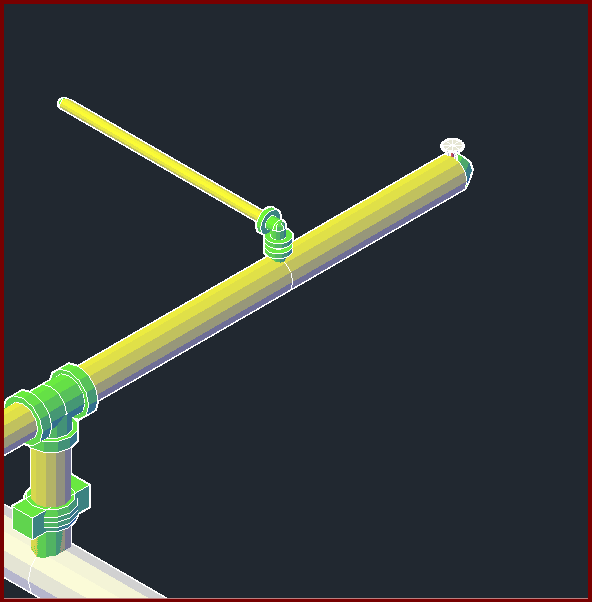

End user had a 2½" x ½" outlet for a vent on a branchline

Solution:

Autocalc doesn't like that outlet combination. Change the vent diameter to 1" for calc purposes then switch it back to ½" when the calcs are complete.

Cause:

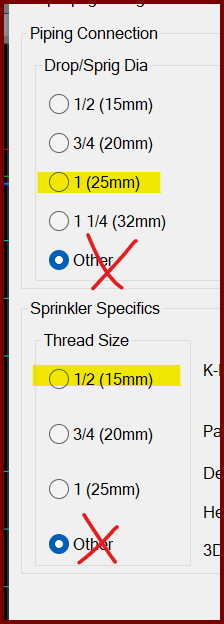

Sprinkler head definition diameters values were set to 'other'

Solution:

Redefine the sprinkler heads to have legitimate values, do not user 'other'

Updated: Oct. 21, 2025, 10:56 a.m. Created: July 16, 2025, 11:44 a.m.

----------------------
#Card: 1399 - link: hydracards.hydratecinc.com/cards/card-1399
#Software: AutoCAD Based
#Product: Calculations
======================
Button: Start Autocalcs

Message:
When starting AutoCALC the v50 Fuel Gauge stops at step 1a.4 plus you get a Run-time error 6; Overflow Working on pipe from Node ### to Node ### with a fitting of "?" and a diameter of / pipe type of 0.5 / SCHED-40 where the pipe id = ### The "####" values represent handles.  It is recommended you use the FINDME tool to find the coordinates of the handles, this will help narrow down the cause of the error.May also see a Runtime Error 5, "invalid procedure"
Solutions:

1.- Cause: Sprinkler head definition diameters values were set to 'other'
        Solution: Redefine the sprinkler heads to have legitimate values, do not user 'other'

    2.- Cause: End user had a 2½" x ½" outlet for a vent on a branchline
        Solution: Autocalc doesn't like that outlet combination.  Change the vent diameter to 1" for calc purposes then switch it back to ½" when the calcs are complete.

----------------------
